Condor F31-1D C-Foil

Typeshield

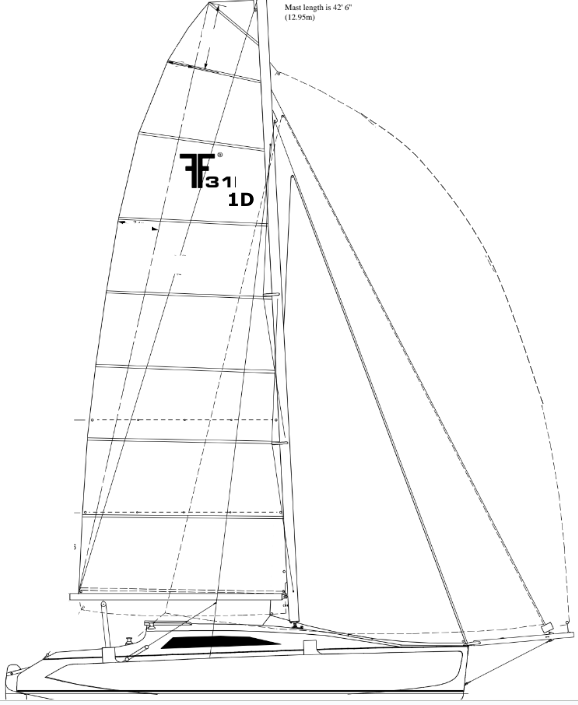

Boat & Rig Render

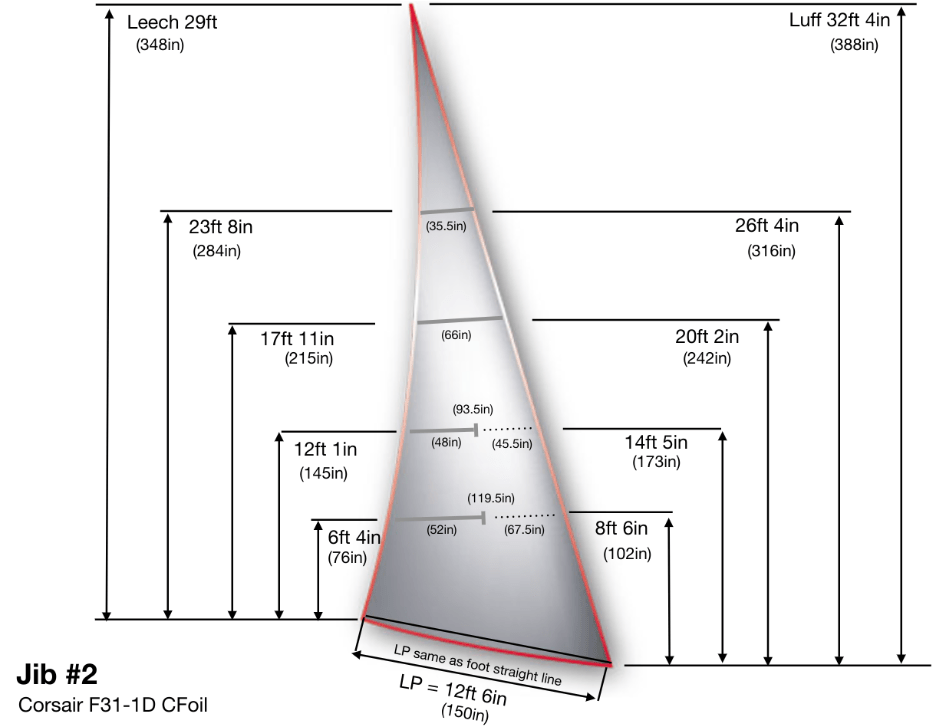

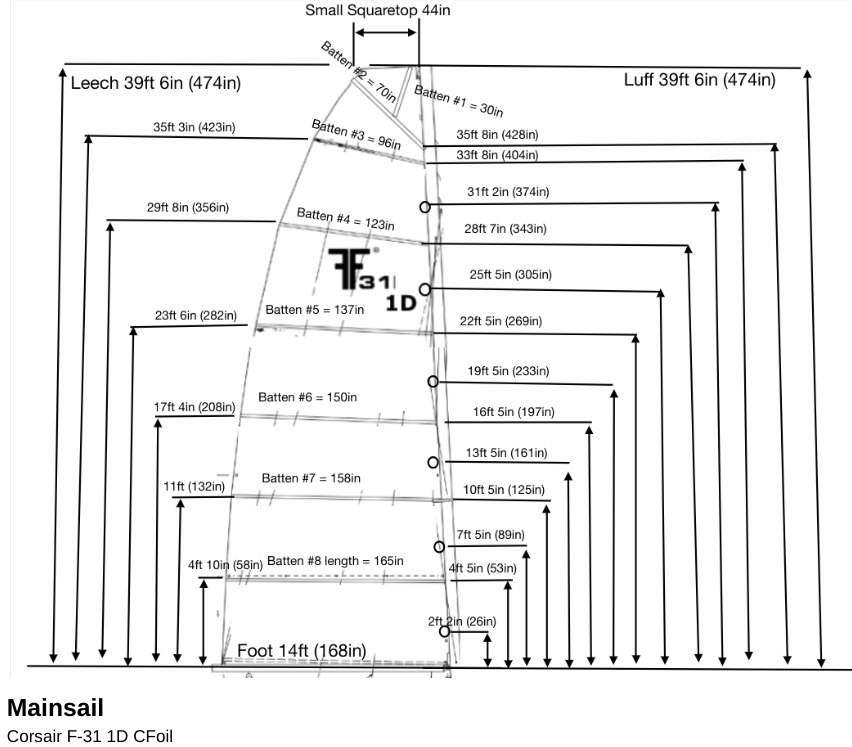

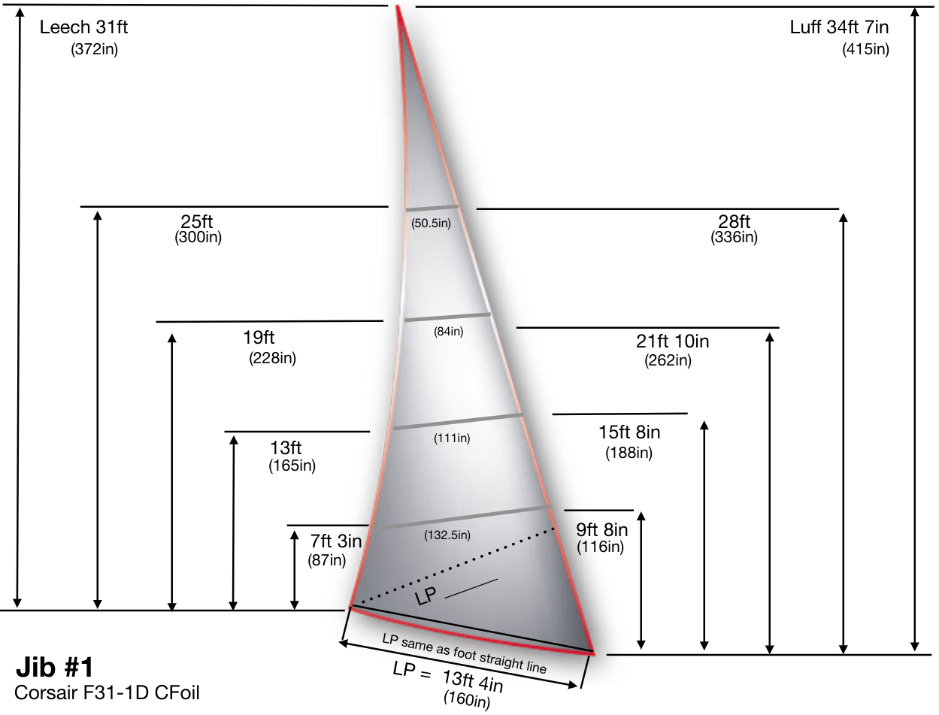

Sails Render Jib1, Jib2, Main

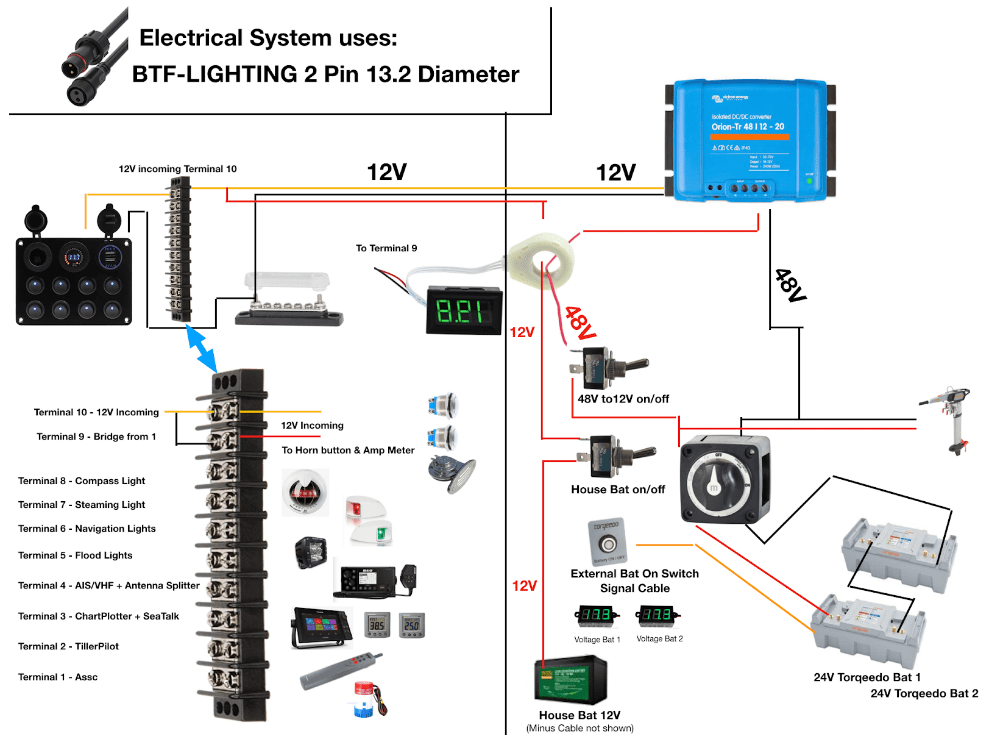

Visual Wiring Diagram

1. Redundant 12V for Instruments & Radio:
   • Torqeedo Bat to 48V to 12V Victron converter
   • 12V Mini Lipo Backup/Emergency Battery
2. Redundant Torqeedo Battery on/off Switch
   • Via Motor Tiller
   • Torqeedo Push button On/Off switch

Seatalk & Nmea Diagram

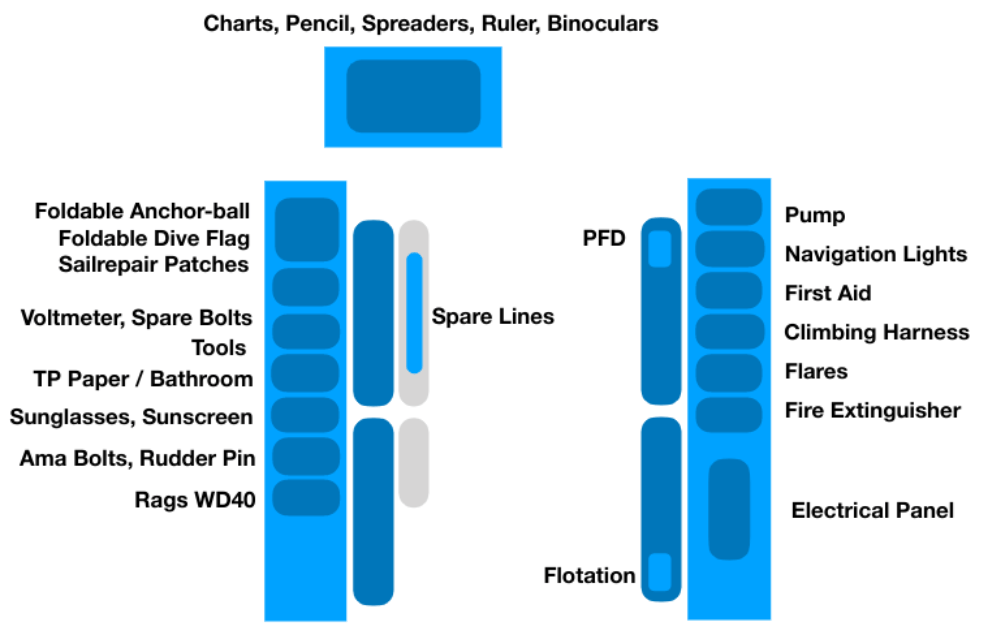

Interior Layout

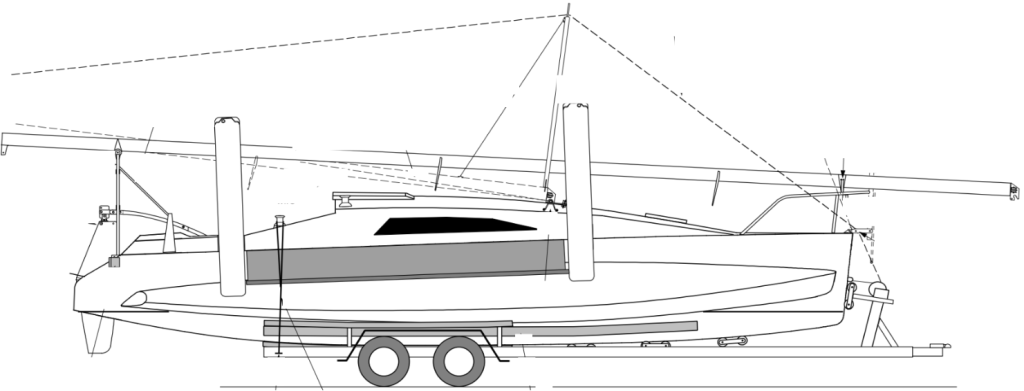

Mast Raising Gin Pole

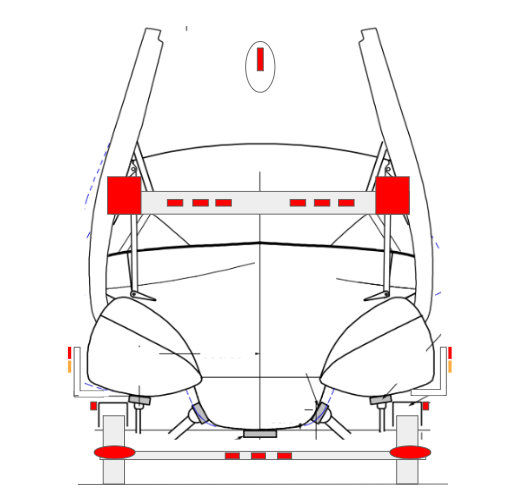

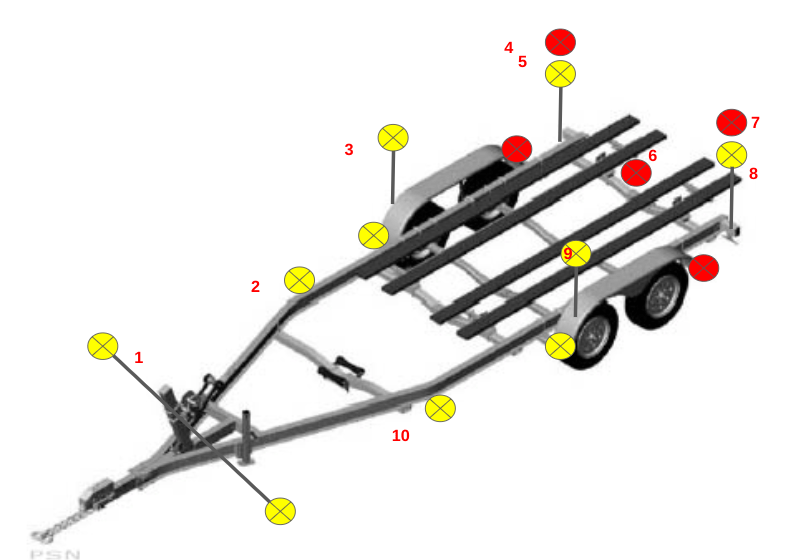

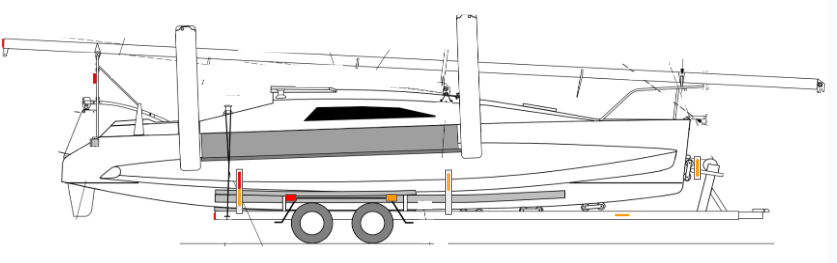

Trailer Lights
